Bind DataGrid using Entity framework (EDMX model) in wpf

In this article we will learn how to bind DataGrid using EDMX file in wpf. I already bind dataGrid in window form using EDMX. In both article, i notice that only one difference between both that is xaml file. Lets to start to design this in wpf:


<Window x:Class="SplashSCreen.bindgridpanel"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:SplashSCreen"
        mc:Ignorable="d"
        Title="bindgridpanel" Height="300" Width="300">
    <Grid>
        <DataGrid AutoGenerateColumns="False" ColumnWidth="*" x:Name="dataGrid" HorizontalAlignment="Left" Margin="54,56,0,0" VerticalAlignment="Top" Height="178" Width="173">
            <DataGrid.Columns>
                <DataGridTextColumn Binding="{Binding Emp_Id}" Header="Emp_Id" />

                <DataGridTextColumn Binding="{Binding Emp_Name}" Header="Emp_Name" />

            </DataGrid.Columns>


        </DataGrid>

    </Grid>
</Window>




Above mentioned code define the binding structure. I have one dataGrid control in the window. x:Name is a property of each control which is define the class instance , through which we can access other property of control in business logic. I have two Text column in dataGrid which take two attribute first one is Binding and another one is Header. Header represent the DataGrid column name and binding define the actual name of database table column's name.

Note : Before going to code behind must to add EDMX file in the project.

using System.Linq;
using System.Windows;

namespace SplashSCreen
{
    /// <summary>
    /// Interaction logic for bindgridpanel.xaml
    /// </summary>
    public partial class bindgridpanel : Window
    {
        TutorialEntities TE = new TutorialEntities();
        public bindgridpanel()
        {
            InitializeComponent();
            loadgrid();
        }

        private void loadgrid()
        {

            var data = from d in TE.emps select d;
            dataGrid.ItemsSource = data.ToList();
        }
}
}

Code generate the following output

After add the edmx file in the project , you can access the public property of context class (here i have 'emps'). Through which we can apply operation on dataGrid.

Add image in wpf window background

If you want to add image in window background of WPF application then you should use Window.Background tag in xaml. Before set the image in background you must to add the image in the solution explorer. If you add image in the subfolder then specified the path of the folder like below example.

<Window x:Class="SplashSCreen.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:SplashSCreen"
        mc:Ignorable="d"
        Title="MainWindow" Height="500" Width="525">



    <Window.Background>
        <ImageBrush ImageSource="image/nokia.jpg" />
    </Window.Background>




    <Grid>

    </Grid>
</Window>

Now, code generate the following output:

How to bind ListBox in wpf

Today i am taking about listBox in WPF. In previous articles of windows form and web form i already discussed about  ListBox. In this article i will use same control in different technology(WPF). We know that ListBox is a container of Objects. Listbox contain ItemsSource property of it which is used to bind it with the database table. You can manually define the listbox items using ListBox itemTemplate. Look at this example :

<Grid>
        <ListBox ItemsSource="{Binding Path=emp}" x:Name="listBox" HorizontalAlignment="Left" Height="225" Margin="58,48,0,0" VerticalAlignment="Top" Width="218">
            <ListBox.ItemTemplate>
                <DataTemplate>
                    <StackPanel>
                        <TextBlock Text="{Binding Path=Emp_Id}"/>
                        <TextBlock Text="{Binding Path=Emp_Name}" />
                    </StackPanel>
                </DataTemplate>
            </ListBox.ItemTemplate>

        </ListBox>


    </Grid>

Code behind code

using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;

namespace SplashSCreen
{
    /// <summary>
    /// Interaction logic for bindlist.xaml
    /// </summary>
    public partial class bindlist : Window
    {
        public bindlist()
        {
            InitializeComponent();
            loadlist();
        }

        private void loadlist()
        {
            SqlConnection con = new SqlConnection();
            con.ConnectionString = ConfigurationManager.ConnectionStrings["connsetting"].ToString();
            con.Open();
            SqlCommand cmd = new SqlCommand();
            cmd.CommandText = "select * from [emp]";
            cmd.Connection = con;
            DataSet ds = new DataSet();
            SqlDataAdapter da = new SqlDataAdapter(cmd);
            da.Fill(ds, "emp");
            listBox.DataContext = ds;

        }
    }
}

Binding process in the code behind model are same in windows form as well as web forms. Only one difference that is DataSource, here we use DataContaxt.

Code generate the following output:

Internet explorer input box show password eye button

Internet explorer's input box show the password when we click on eye button. When we press the button then show the password but when we release it then input character automatically convert into password format. Today, in this article we will design the input box whose will show the password just like eye button. This article designed in html and functionality of the article will handle by JQuery.

The complete code available in the video, so see this and learn more things about JQuery:

In this video, i have two text box, first is used for hide the password and second is used for show the password. When first time load the browser then hide second text box. When user click on show password  button then second textbox take the value of first text box also hide first text box and show second.

How to Bind Adrotator control in asp.net

Introduction
The Adrotator control displays a sequence of images, known as advertisements, on a Web page. The sequence in which the images appear can be predefined or random in nature. These advertisements, which all Internet users are familiar with, are image files in GIF, JPEG, or other format that the user can click to navigate to the advertiser's website.

Public Properties of the Adrotator Class
 AdvertisementFile : Obtains or sets the path to an XML document that contain advertisement information.

Design a xml file for advertisements name as "advertisements.xml"

<?xml version="1.0" encoding="utf-8" ?>
<Advertisements>
  <Ad>
    <ImageUrl>security.JPG</ImageUrl>

    <Width>
    200px
  </Width>
    <Height>
      200px
    </Height>
  </Ad>
<Ad>
    <ImageUrl>images.JPG</ImageUrl>
<Width>
    100px
  </Width>
<Height>
      200px
    </Height>
  </Ad>
</Advertisements>

Drag and drop adrotator control onto the design window from toolbox

<%@ Page Language="C#" %>
<!DOCTYPE html>
<script runat="server">
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:AdRotator ID="AdRotator1" runat="server" AdvertisementFile="~/advertisements.xml" />
        </div>
    </form>
</body>
</html>

Output

How to bind label control in asp.net

Step-1: Open Visual Studio IDE
Step-2 : Create New Web Project

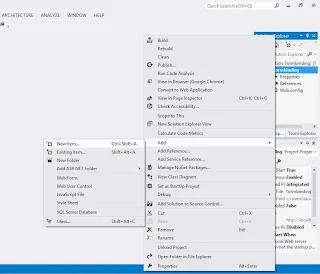

Step-3: In Solution Explorer Add new item

Step-4: Select web form in middle pane also select c# in left pane

Step-5: Change name of the webform as "labelbind.aspx" also select place code in separate file check box

Step-6:   Right click on  Project name and add new item  again.

Step-7: Open a new dialog window Select SQL SERVER database  name as a "database.mdf"

Step-8: After click ok Button . a new dialog appear on the screen

Do you want to place the file in App_data folder

Step-9: Click Ok Button in dialog window
Step-10: Open Server Explorer
Step-11 Make a new table inside Database

Step-12:

Step-13: fill This Table with Some value
Step-14: Open  " labelbind.aspx " page
Step-15: Drag and Drop label control onto the labelbind.aspx page from toolbox

Step-16: Add this code in Design page

---

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="labelbind.aspx.cs" Inherits="labelbind" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:Label ID="Label1" runat="server" Text="">
            UserId:<%# myname %>


        </asp:Label>
    </div>
    </form>
</body>
</html>

Step-17 Add this code in .cs file

---

using System;
using System.Data.SqlClient;

public partial class labelbind : System.Web.UI.Page
{
    public string myname;
    SqlConnection con = new SqlConnection();
    SqlCommand cmd = new SqlCommand();


    protected void Page_Load(object sender, EventArgs e)
    {
        con.ConnectionString = @"Data Source=(LocalDB)\v11.0;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True";
        con.Open();
        cmd.CommandText = "select * from [Employee]";
        cmd.Connection = con;
        SqlDataReader rd = cmd.ExecuteReader();
        while (rd.Read())
        {
            myname = rd["Emp_Name"].ToString ();

        }
        this.DataBind();



    }
}

---

OutPut

Student and fees management project in c#

Introduction
This project is related to school management system. In this project we have a Sql Database to store student information also store their fees details. The main motive behind the project is to persist the student information in single place. So,we can retrieve that information easily and quickly.

Front-end and Back-end:
Front-end : Windows form with c# as business logic
Back-end :  SQL Server 2014

How to run this:


How to design the system

1. First to add new windows form in the solution.
2. Add some control in the form.
3. Now, add business logic in the code file.

Module in the project

1. Add new Student: Through this module we can add student details like : Student name, Student father name , Student mother name, Student address etc.
2. Edit Details :  You can edit details of student by their enrollment id.
3. Search Student details : You can search stored student details by student name. In this project we can add auto complete type functionality.
4. Delete Student Details

How to Download :  Mail me : narenkumar851@gmail.com
